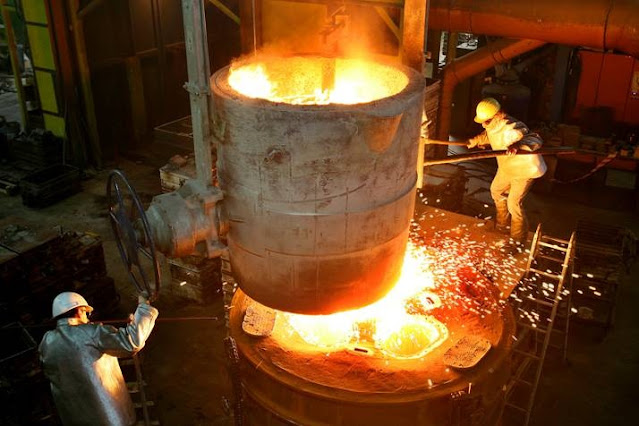

Steel casting is the
process of creating steel by pouring molten steel into a mold cavity. In the
steel casting process, liquid steel is slowed down to moderate temperature and
is allowed to solidify in the mold cavity and is then detached for cleaning.
However, heat-treating may be needed to meet the specific properties of the
cast steel. In this article, we have briefly discussed the steel casting
process used by steel castings company in India.
Types of patterns used
in steel casting:
·
Wood patterns:
These patterns are
comparatively less expensive than other materials but are ideal for limited and
prototypes production. They can quickly be modified to plastic if there is an
increment in the production requirements.
These patterns are
costly, but they are needed for high-volume production. However, the material
can be bronze, brass, aluminum, iron, etc. The cast aluminum is the most
typically utilized material for standard volume requirements. Therefore, metal
patterns are needed for both molds or cores generated by the shell process.
These patterns are
utilized in the lost wax, or investment, molding process. This process uses
dies to create the patterns. The wax patterns are covered with a ceramic slurry
to make a shell. Further, the wax is then detached by heat.
These patterns may be
utilized in the bonded sand or ceramic molding systems. In the bonded systems,
inexpensive alternatives for other robust materials and ceramic systems may be
alternatives for wax.
The above-given types
of patterns used in the steel castings company in India can opt for
foam, wood, plastic, wax, metal, etc. The choice is based on the size of parts,
quantity, cost, molding method, and casting tolerances needed.
Molding processes
involved in steel casting:
Following are some of
the molding processes involved in steel casting:
It is one of the
broadly used systems, and because of automation in various green sand
foundries, the very affordable process. Clay and water in the sand enable molds
to be generated with a high degree of firmness and accuracy in the mold cavity.
It utilizes a heated
pattern and resin bonded sand to generate a fused sand mold with incredible
detail and dimensional accuracy. Material and power prices are high than green
sand. Hence, this process is not ideal for larger castings.
- Chemically bonded molding:
It utilized sand and
other various gases or chemicals to make a dry hard mold. However, the
dimensional accuracy is also good, and the process is ideal for all sizes of
parts. Therefore, the sand recoupment price is high, and comparatively, the
process is costly than green sand.
It utilized unbounded
dry sand. The mold depends on the vacuum of its firmness; the vacuum must be
controlled during cooling and pouring. This process can create all sizes of
parts, surface appearance and accuracy are also good.
Investment casting is
also called lost wax. It used a foam or wax pattern by an exact metal mold.
Multiple patterns are rooted to a tree and further immerse it into a ceramic
slurry. Consequent drying and immersing generate a thick shell of ceramic which
changes into the mold. The foam or wax is detached by heat before pouring. This
process is restricted to minor castings and is eventually not competitive
unless some machining can be terminated.
Graphite molding
employs semi-permanent graphite molds. Dimensional surface appearance and
control are excellent. It is ultimately a specialized process ideal mainly for
railroad wheels parts.
This step generates
parts from molten metal that are poured into rotating molds. The rotation of
the mold provokes the metal to be grasped to the internal diameter of the mold.
It is typically suited for symmetrical configurations and pipes.
Ceramic molding uses a
composition of the catalyst, hydrolyzed ethyl silicate, and refractory
materials, which are further poured over a pattern. Therefore, the ceramic
shell is cleaned before entirely setting, then fired and arranged for pouring.
This process generates a fantastic surface accuracy and appearance, and it is
reshaped explicitly to blades, turbines, and manifolds.
Melting and pouring
operations used in steel casting:
In the steel casting
process, multiple types of melting furnaces are utilized in the production,
which is briefly discussed below:
Electric arc furnaces
are accountable for producing most of the steel castings (84%). These units
comprise a refractory lined roof, steel shell, and refractory covering three
gaps for graphite electrodes. The heat achieves the melting from the electric
arc. Ultimately the EAF is the most feasible unit for melting steel in that the
charging substance can be assorted, and the steel can be distilled in the
furnace before tapping.
- Electric induction furnaces:
This step is the most
customary unit for minor production quantities. The furnace contains a steel
shell with a refractory coating encompassed by a copper coil. An electric
current produces heat in the oil.
- Finishing and heat treating:
When a casting has set
at a moderate condition, it is unsettled out of the mold. Before it is shipped,
it must be cleaned or finished. The first procedure is an abrasive blast which
cleanses the surface of all excess mold. Then the extrinsic gating system metal
and fins are detached by grinding or sawing and torch cutting. Welding
disjointedness is the usual practice in the steel casting industry.
Next is the heat
treatment process, which is used to improve the properties of particular
alloys. The scale processed on casting surfaces during heat treatment is
detached by abrasive blasting. Steel castings can be neatened by pressing if
warpage happens during processing. Overall this operation assures the
dimensional precision of the finished part.
Rough or pre-machining
has become very familiar in the steel castings company in Indian factory
foundries. When the client needs a very exact location of reduced finish stock
or finish stock, the foundry can run a pre-machining operation to offer the
desired attributes. However, several foundries can also supply components in
the finish machining condition.
- Process tolerances and
capability:
This step depends on
multiple factors like mold material, straightening, pattern quality,
pre-machining, etc. all these can affect tolerances. The potential to control
the casting process is ultimately vital in today's period.
Conclusion:
We have learned
briefly about the steel casting process and the pattern types used by the steel
casting manufacturers in India in the above-given information. So
implement the above processes and patterns wisely while doing steel casting.
